Galvanized Wire -Anping County Guanhang Wire Mesh Products Co., Ltd.

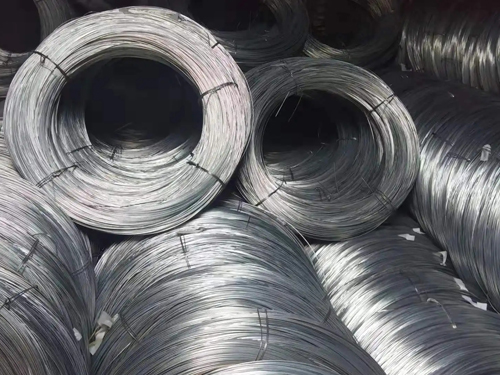

Electro-Galvanized wire

Electro galvanized iron wire can be supplied in the form of coil wire, bobbins wire, spool wire, cut wire .

Electro galvanized iron wire, also written as electric galvanized steel wire, or galvanized iron wire, galvanized wire. Electro galvanized steel wire and hot-dipped galvanized steel wire are the most important wire products of Sanxing for export.

We have two production lines for electro galvanized steel wire currently while two for hot-dipped galvanizing steel wire specially.

Material: Low carton steel wire,Q195.

Technical explanation:

Electro galvanized wire gauge from BWG8-BWG32

Tensile strength is 45kg/mm2-70kg/mm2

Firmed coating layer

The single roll wire without any inter-cuts of breaks

Customers size is available.

Characteristic﹠Application: High Zinc coating with super in corrosion resistance, firmed and well-proportioned Zinc coating, slippery surface, uses in the weaving of wire mesh and reprocess, widely used in industry., agriculture and stockbreeding etc.

Pacakage:0.3kgs to 1000kgs are available, plastic inside and weaving bag outside.

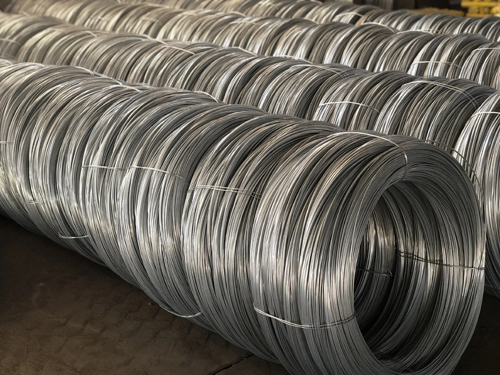

Hot dipped galvanized iron wire

Material: Low carton steel wire, Q 195.

Technical Assortment:

Hot dipped galvanized iron wire, zinc coating: 30G/M2-370G/M2

The standard wire guage from BWG8-BWG32.

Tensile strength is 45kg/mm2-70kg/mm2.

Firmed coating layer

The single roll wire without any inter-cuts or breaks

Customers size is available.

Characteristic﹠Application: High zinc coating with super in corrosion resistance, firmed and well-proportioned and zinc coating, slippery surface. Uses in the weaving wire mesh and process, widely used in industry and stockbreeding etc.

Package: 0.3kgs to 1000kgs are available, plastic inside and weaving bag outside.

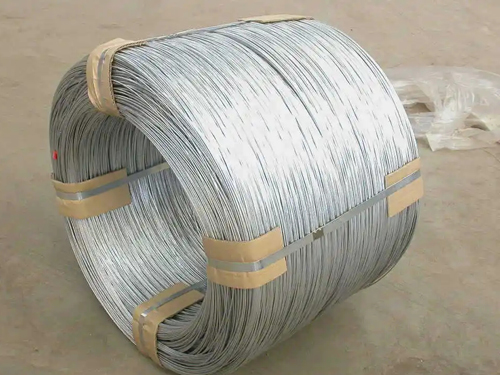

Packing:Coil with plastic cloth inside and hessian ourside or as customers' requirement

1)galvanized wire

2)HS Code:7217200000

3)Size:BWG6-BWG22

4)Zinc:20-300g/m2

5)Tensile:40-70kg/mm2

Weight:0.5kgs/roll,1kgs/roll, 5kgs/roll, 8kgs/roll, 10kgs/roll, 25kgs/roll, 50kgs/roll, 100kgs/roll or can be according to customers requirement.

Please feel free to contact us for more detailed information or send us your specification requirements in order for us to quote the best price.


Galvanized Wire	Galvanized Wire

Galvanized Wire	Galvanized Wire

Wire gauge size	SWG			BWG
	Inch		mm	inch	mm
8	0.160		4.06	1.165	4.19
9	0.144		3.66	0.148	3.76
10	0.128	3.25		0.134		3.40
11	0.116	2.95		0.120		3.05
12	0.104	2.64		0.109		2.77
13	0.092	2.34		0.095		2.41
14	0.080	2.03		0.083		2.11
15	0.072	1.83		0.072		1.83
16	0.064	1.63		0.065		1.65
17	0.056	1.42		0.058		1.47
18	0.048	1.22		0.049		1.25
19	0.040	1.02		0.042		1.07
20	0.036	0.91		0.035		0.89
21	0.032	0.81		0.032		0.813
22	0.028	0.71		0.028		0.711
23	0.024	0.61		0.025		0.64
24	0.022	0.61		0.022		0.56
25	0.020	0.51		0.020		0.51
26	0.018	0.46		0.018		0.46
27	0.016	0.42		0.016		0.41
28	0.015	0.038		0.014		0.36
29	0.014	0.35		0.013		0.33
30	0.0124	0.32		0.012		0.31
31	0.012	0.30		0.010		0.25
32	0.011	0.27		0.009		0.23
33	0.010	0.25		0.008		0.20
34	0.009	0.23		0.007		0.018
35	0.008	0.21		0.005		0.13
36	0.0076	0.19		0.004		0.10
